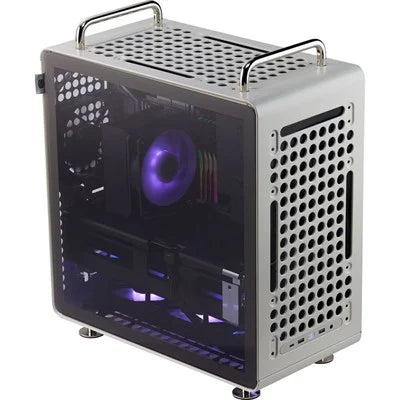

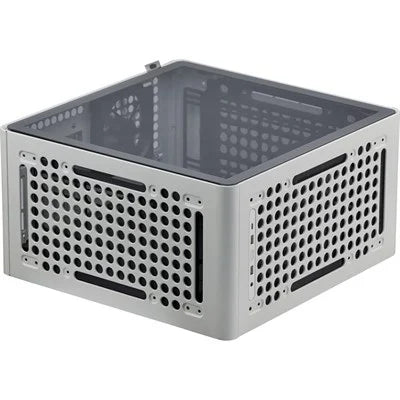

Cooler Master Qube 540 Moonstone PC Case

Product Features

Compact Yet Capable

Small size with support for GPUs up to 415mm, 360mm liquid coolers, and high-end components

Flexible Orientation Design

Use vertically or horizontally to fit your space and style

Modular Interior Layout

Designed for customizable builds from liquid-cooling setups to compact workstations

Repositionable I/O and Handles

Mount the I/O panel and handles on the top, bottom, left, or right

High-Airflow Design

Supports multiple fan and radiator placements with dust filters on top, bottom, and front

Product Specifications

General

Brand: Cooler Master

Series: QUBE Series

Model: Q540-LGNN-S00

Size: Mid Tower

Materials

Materials - Exterior: Steel

Material - Side Panel Right: Steel

Material - Side Panel Left: TG

Dimensions and Volume

Dimensions Incl. Protrusions: 438.5 x 225 x 492.1mm

Dimensions Excl. Protrusions: 425 x 225 x 425mm

Volume Without Protrusions: 40.64L

Volume With Panel, Protrusions and Feet: 48.55L

Motherboard and Expansion

Motherboard Support: ITX / M-ATX / ATX / E-ATX Up To 280mm

Expansion Slots: 7

Drive Bays

Drive Bays 5.25in ODD: N/A

Drive Bays 3.5in HDD: 1 Shared 3.5in and 2.5in Mounting On PSU Bracket

Drive Bays 2.5in SSD: 2 Max. 5

I/O Panel

I/O Panel USB Ports: 2 x USB 3.2 Gen 1 Type A and 1 x USB 3.2 Gen 2x2 Type C

I/O Panel Audio In / Out: 1 x 3.5 Mic / Audio Combo Jack

Fan Support and Preinstalled Fans

Fan Support Front: 3 x 120mm Without I/O Panel or 2 x 140mm

Fan Support Top: 3 x 120mm Without I/O Panel or 2 x 140mm

Fan Support Rear: 1 x 120mm

Fan Support Bottom: 3 x 120mm or 2 x 140mm

Preinstalled Fans Front: N/A

Preinstalled Fans Top: N/A

Pre-Installed Fans Rear: 1x 120mm Black Fan

Radiator Support

Radiator Support Front: 140 / 280 / 360mm Without I/O Panel

Radiator Support Top: 140 / 280 / 360mm Without I/O Panel

Radiator Support Rear: 120mm

Radiator Support Bottom: 140 / 280 / 360mm Without I/O Panel

Clearances and Cable Routing

Clearances CPU Cooler: 172mm

Clearances Power Supply: 200mm

Clearances Graphics Card: 415mm Without Front Fan

Cable Routing Behind Motherboard Tray: 27mm

Filters and Power Supply

Dust Filters: Top / Bottom / Front

Power Supply Support: ATX / SFX
