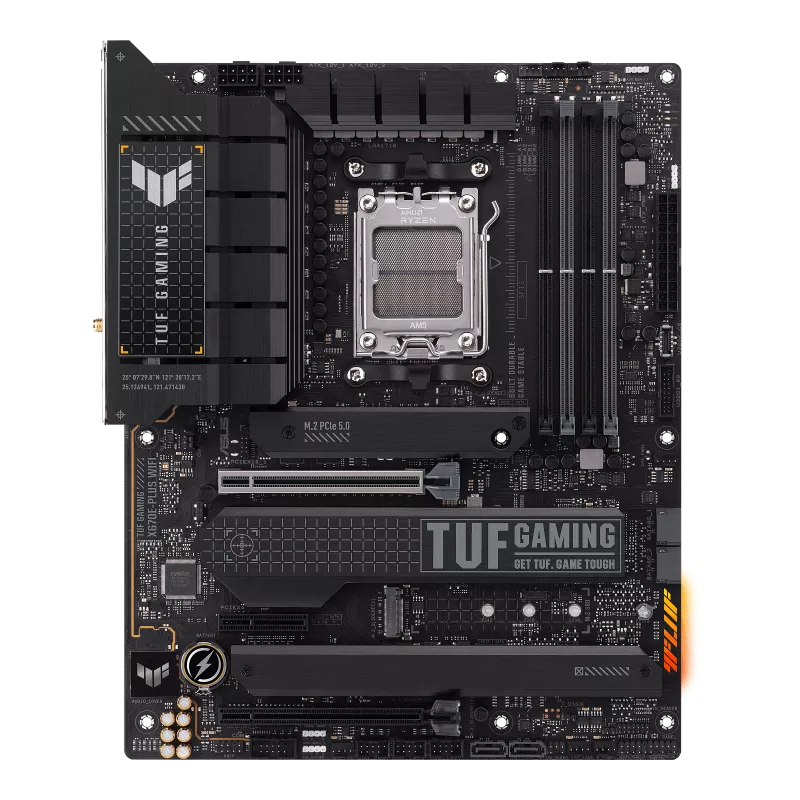

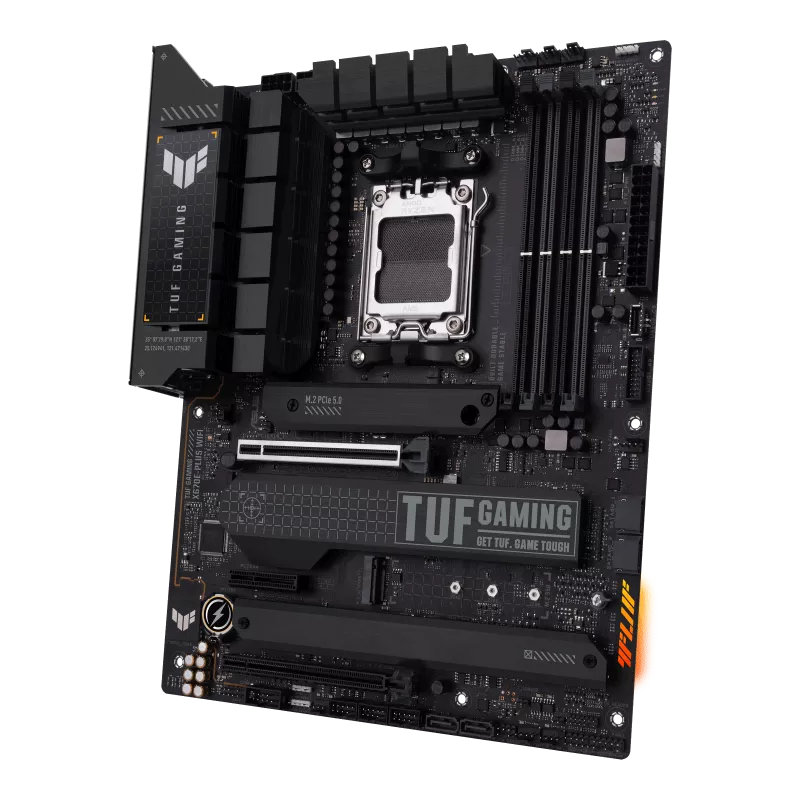

Asus TUF X670E-Plus WIFI Gaming Motherboard

Rs.96,500.00

Availability : In Stock

Brand : ASUS

Model Asus TUF X670E-Plus WIFI Gaming Motherboard Other Detail Chipset: AMD X670 Graphics 1 x DisplayPort**1...



Model	Asus TUF X670E-Plus WIFI Gaming Motherboard
Other Detail	Chipset: AMD X670 Graphics 1 x DisplayPort 1 x HDMI^® port* * Graphics specifications may vary between CPU types. Supports max. 8K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors* -1 x PCIe 5.0 x16 slot (support x16 mode) AMD Ryzen™ 8000 Series Desktop Processors* -1 x PCIe 5.0 x16 slot (support x8/x4 mode) AMD X670 Chipset** -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots * Please check PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. Specifications vary by CPU types. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth** Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries. USB Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C^®) 5 x USB 3.2 Gen 1 ports (5 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C^®) 5 x USB 3.2 Gen 1 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI^® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header

Model

Asus TUF X670E-Plus WIFI Gaming Motherboard

Other Detail

Chipset: AMD X670

Graphics

1 x DisplayPort**
1 x HDMI^® port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
-1 x PCIe 5.0 x16 slot (support x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
-1 x PCIe 5.0 x16 slot (support x8/x4 mode)**
AMD X670 Chipset
-1 x PCIe 4.0 x16 slot (supports x4 mode)
-1 x PCIe 4.0 x4 slots
* Please check PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.
**Specifications vary by CPU types.

Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries.

USB

Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C^®)
5 x USB 3.2 Gen 1 ports (5 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit

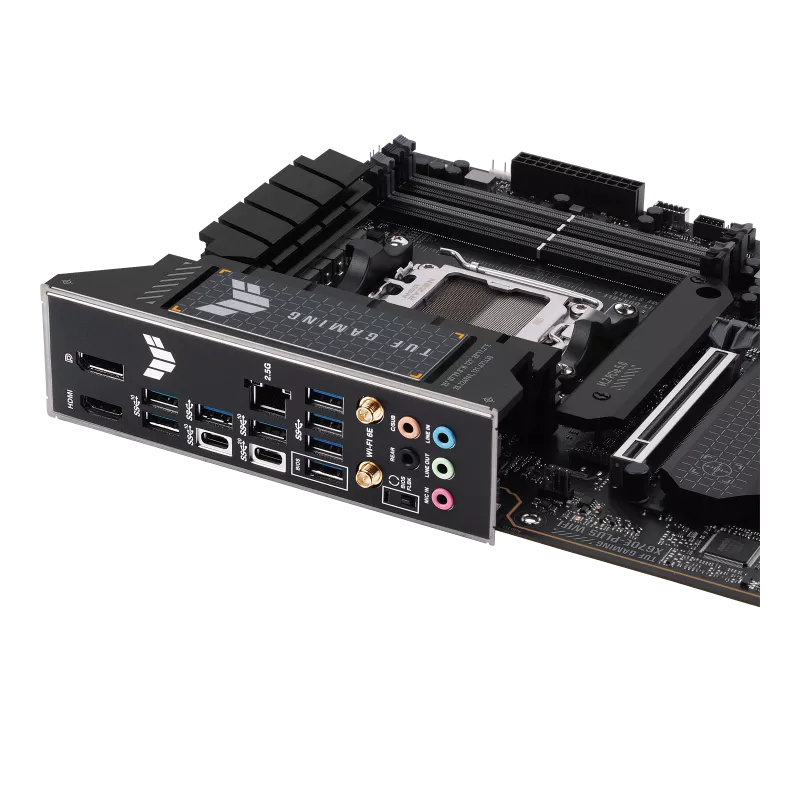

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C^®)
5 x USB 3.2 Gen 1 ports (5 x Type-A)
1 x DisplayPort
1 x HDMI^® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header
